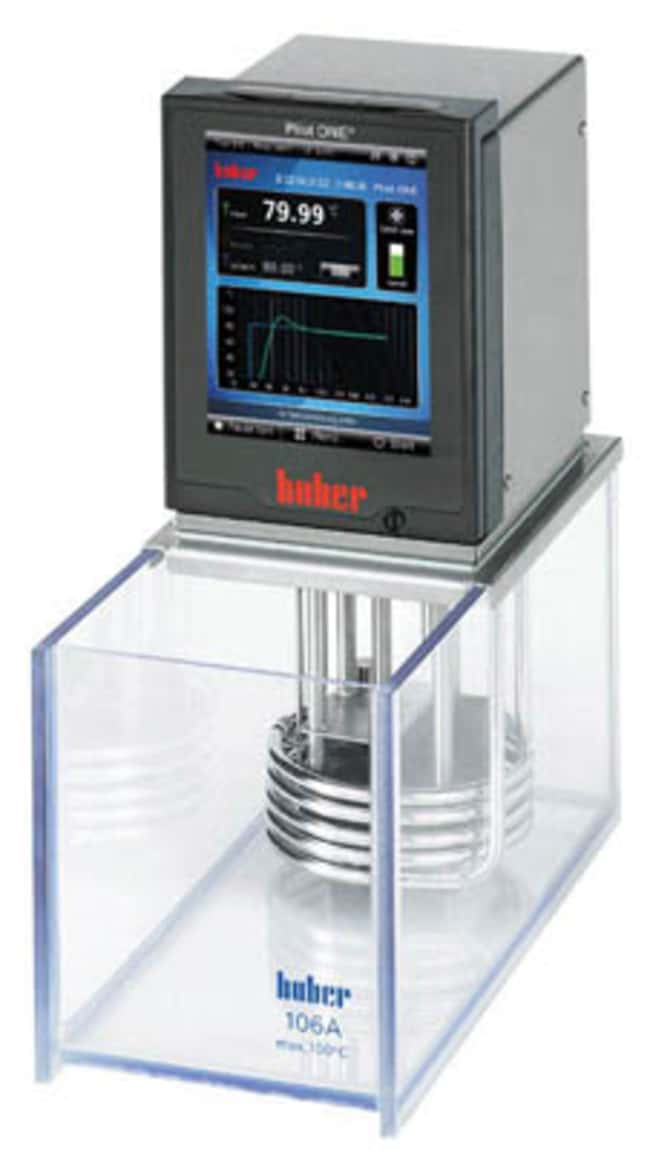

HUBER CC-106A Clear View Bath Circulator

Product Code. 13301889
Click to view available options
Height (Metric):
330 mm
Unit Size:
Each
This item is not returnable. View return policy

Product Code. 13301889

Brand: HUBER 2049.0001.01

Only null left
Add to basket
Add to basket
This item is not returnable. View return policy

Description

Heating bath circulators with baths made from polycarbonate are suitable for many applications such as: sample temperature control, analysis, materials testing, etc. The units are fitted with overtemperature and low level protection and suitable for use with flammable fluids.

CC-106A with controller 'Pilot ONE'
  • Clear View Circulator Bath
  • Temperature range: (15) 25°C to 100°C
  • Heating capacity: 1,5-2,1 kW
  • Pressure pump max.: 27L/min / 0.7bar
  • Suction pump max.: 22L/min / 0.4bar
  • Bath volume: 6L
  • Power supply: 200V-240V 1∼/2∼ 50/60Hz

Specifications

Certifications/Compliance Safety class III/FL (DIN 12876)
Temperature Range 25°C to 100°C
Type Heating Circulation Bath
Heating Capacity 1.5-2.1 kW
Model CC-106 A
Temperature Stability ±0.02°C
Width (Metric) 147 mm
Height (Metric) 330 mm
Electrical Requirements 200 V-240 V 1∼/2 ∼ 50/60 Hz
Voltage 200/230 V
Frequency 50/60 Hz
