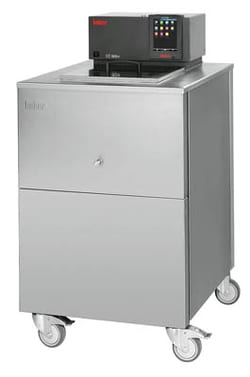

HUBER CC-905w Refrigerated Heating Bath Circulator

Product Code. 13361569
Click to view available options
Height (Metric):
1136 mm
Unit Size:
Each
This item is not returnable. View return policy

Product Code. 13361569

Brand: HUBER 2027.0002.01

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy

Description

Refrigeration bath circulators are suitable for controlling the temperature of externally connected applications and thermoregulation of objects directly in the thermostat bath. Typical applications are: photometers, refractometers, viscometers, double-jacketed reaction vessels and autoclaves.

CC-905w with controller 'Pilot ONE'
  • Refrigerated heating circulator bath
  • Temperature range: -90°C to 200°C
  • Cooling capacity (20°C): 2kW
  • Cooling capacity (0°C): 2kW
  • Cooling capacity (-40°C): 1.7kW
  • Cooling capacity (-80°C): 0.34kW
  • Heating capacity: 3kW
  • Pressure pump max.: 25L/min / 0.7bar
  • Suction pump max.: 18,5L/min / 0.4bar
  • Pump connection: M16 x 1 male
  • Power supply: 400V 3∼N 50Hz

Specifications

Cooling Capacity 200°C at 2.5 kW, 100°C at 2 kW, 20°C at 2 kW,0°C at 2 kW, -20°C (at 1.9 kW)
Pump Type Circulation
Temperature Range -90°C to +200°C
Display TFT
Features TFT Touchscreen Display , E-grade Fuction, Integrated Programmer, USB Inferance, Ethernet Inferance, RS232 inferance, Plug and play control technology, Compatible with spycontrol,Easy control operating concept, Protection safety fuction, Natural refrigerant
Heating Capacity 3 kW
Model CC-905 W
Pump Capacity 25 L/min ; 0.7 bar Pressure, 18,5 L/min ; 0.4 bar Suction
Safety Class 3/FL
Temperature Stability ±0.02°C
Warranty 3 years for removable (Plug & Play) electronic controls, 2 years for refrigeration components, 1 year for mechanical and electrical components
Width (Metric) 605 mm
Height (Metric) 1136 mm
Weight (Metric) 175 kg
Voltage 400 V
Frequency 3∼N 50 Hz
