Description

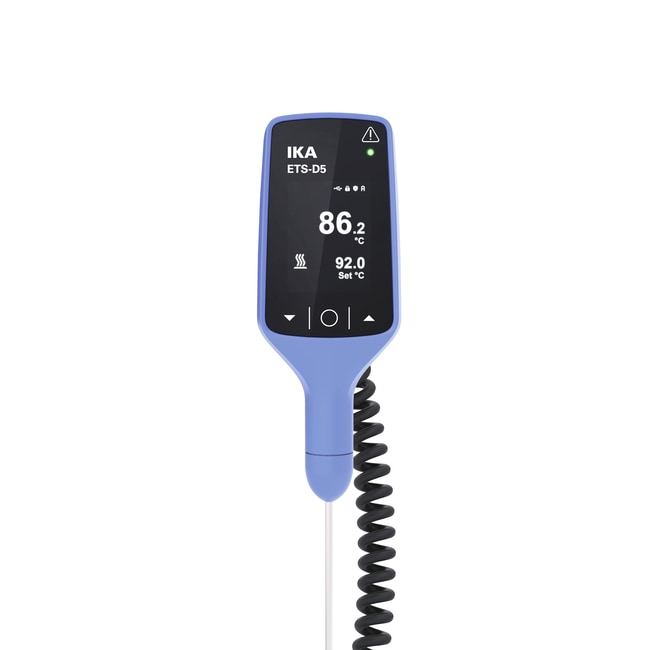

- The new ETS-D5 electronic contact thermometer redefines precision, safety, and ease of use, developed specifically for demanding laboratory processes requiring reliable temperature control.
- Wide temperature range from -20 °C to +400 °C with high display resolution of 0.1 K for precise laboratory temperature monitoring.
- High accuracy of ±0.2 K + PT1000 sensor tolerance (class A) ensures reliable and reproducible measurements.
- Optimized PID control provides stable temperature regulation without overshoot for accurate laboratory processes.
- Automatic shutdown of the magnetic stirrer occurs in case of sensor error or if the defined safety temperature is exceeded, ensuring maximum process reliability.
- Replaceable temperature sensor available optionally with coating H66.53 or glass version H66.51 for flexible laboratory applications.
- Can be extended with an intermediate cable for additional setup flexibility.
- Integrated safety features include adjustable sensor timeout detection when the sensor is not immersed in the medium.
- Temperature drop detection reacts to unexpected temperature decreases and can be adjusted according to application requirements.
- Setpoint monitoring (Delta T) switches off temperature control when the setpoint is exceeded by Delta T for enhanced safety.
- Setpoint limitation function restricts the maximum adjustable temperature for improved operational protection.
- Safe temp function switches off the temperature control when the defined value is exceeded.
- In the event of a fault, the stirrer remains switched off to provide maximum laboratory safety.
- Three temperature control modes include Fast for rapid heating, Precise for maximum accuracy, and Synthesis block optimized mode for chemical syntheses.
- Adjustable heating speed in percentage allows gentle heating for sensitive samples.
- Convenient touch display ensures intuitive and user-friendly operation.
- USB-C interface supports fast and easy data transfer to a PC.
- An electronic contact thermometer is a temperature controller with an integrated sensor that directly controls the heating power of a magnetic stirrer.
- When connected, the device actively controls the medium temperature by switching the heating plate on and off accordingly, while the magnetic stirrer continues monitoring preset safety limits.
- Provides upgrade options for devices without integrated external temperature control.
- Additional safety circuit for medium temperature monitoring is crucial for laboratory risk analyses and enhanced process safety.
- Improved display resolution and software data transfer capabilities support better process monitoring and documentation.
- Clear assignment of the measuring point minimizes mix-ups during laboratory operation.
- The ETS-D5 is more than just a temperature sensor, functioning as an intelligent safety and control center for modern laboratories.
- Advanced interface technology, integrated safety features, and optimized control provide maximum control, protection, precision, safety, and user comfort for laboratory processes.
Specifications
Specifications
| Certifications/Compliance | PT1000 (DIN IEC 751 Class A) |
| Dimensions (L x W x H) | 36 x 52 x 385 mm |
| Disposable | Reusable |
| For Use With (Application) | Temperature Measurement and Heating controler |
| Immersion Type | Partial |
| Material | Stainless Steel (304), Glass, Plastic |
| Resolution | 0.01 K |
| Weight (Metric) | 0.156 kg |
| Product Type | Temperature Control Probe |
| Max. Temperature (English) | 400°C |
