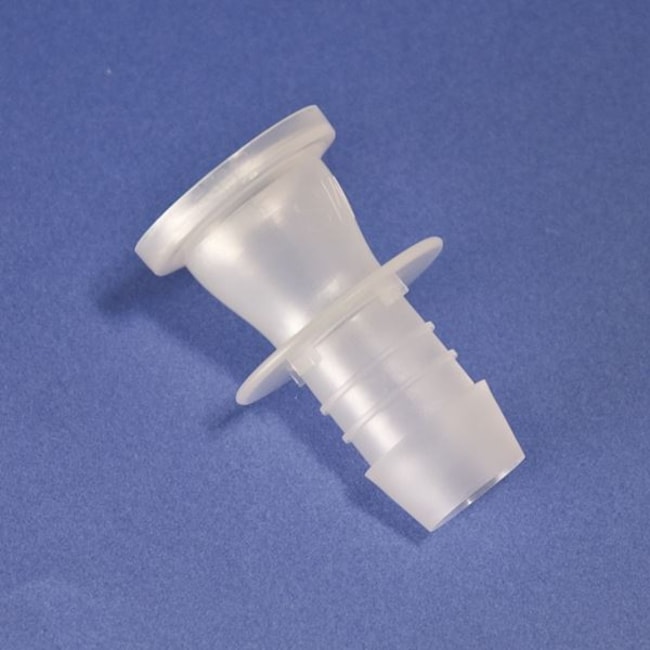

Saint Gobain Life Sciences Pure-Fit™ SIB™ Mini Series

Product Code. 15602837
Change view
Click to view available options
Hose Barb ID:
0.5 in.
Material:
Polypropylene
Hardness:
85 (Shore D)
Max. Operating Temperature (English):
200°F
Unit Size:
Pack of 25
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Hose Barb ID Material Hardness Max. Operating Temperature (English) unitSize
15602837 0.5 in. Polypropylene 85 (Shore D) 200°F Pack of 25
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
This item is not returnable. View return policy
Product Code. 15602837 Supplier Saint Gobain Life Sciences Supplier No. PFMS500PPAF

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy

Description

Utilizes the patented BarbLock™ retention and seal system. Pure-Fit™ SIB™ provides a seamless transition that maintains fluid integrity and leak-free connections with complete biocompatibility for the most demanding applications and stringent test protocols.

Pure-Fit SIB eliminates entrapment and leak points that can occur with traditional assembly systems. The unique internal design eliminates voids or dead space that can lead to turbulence or stagnation of fluid flow creating the potential for bacterial growth.

  • Available in both animal-free polypropylene (PP) and polyvinylidene fluoride (PVDF)
  • Maximum Temperature: Polypropylene: 93°C (200°F), PVDF:135°C (275°F)
  • Hardness: Polypropylene: 85 (Shore D), PVDF 78 (Shore D)
  • Maximum Pressure: 250 psi
  • All materials completely animal-free and BPA-free
  • PP is gamma stable, PVDF is autoclavable and gamma stable
  • Fully compatible with Pure-Fit and BarbLock retainers for complete 360° compression
  • USP Class VI and ISO compliant; Manufactured and packaged in a certified clean room
  • Available in a variety of sizes
TRUSTED_SUSTAINABILITY

Specifications

Certifications/Compliance USP Class VI, ISO
Autoclavable Not Autoclavable
Diameter (Metric) Inner 12.7 mm
Material Polypropylene
For Use With Saint-Gobain Sani-Tech™, C-Flex™ and PharMed™ Flexible Tubing
Product Line Mini Series
Hose Barb ID 0.5 in.
Color Natural
Hardness 85 (Shore D)
Maximum Pressure 250 psi
Max. Operating Temperature (English) 200°F
Max. Operating Temperature (Metric) 93°C
Product Type Connector
